Preview: T60 - solid carbide high feed end mill Ø3,0mm, optimized for machining titanium

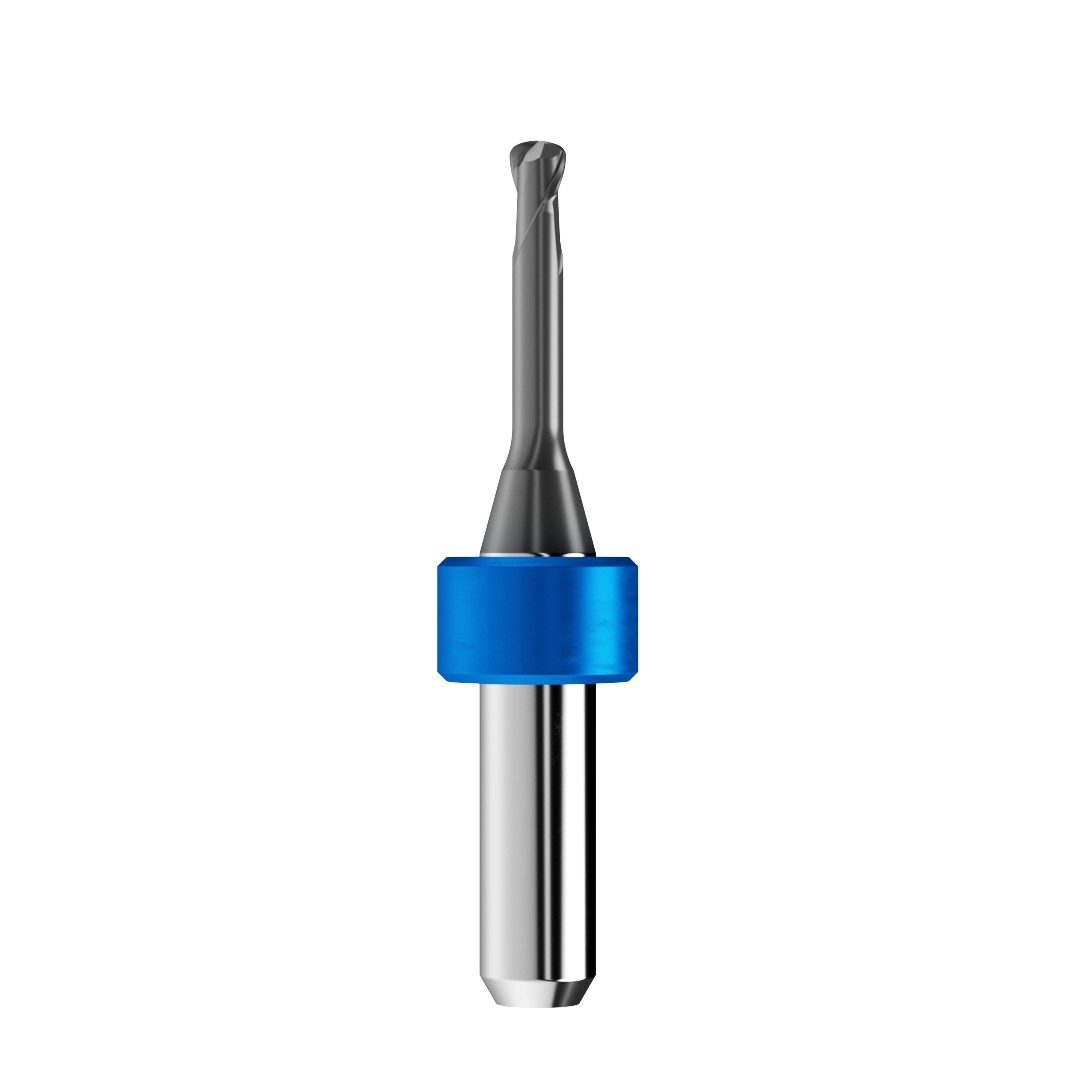

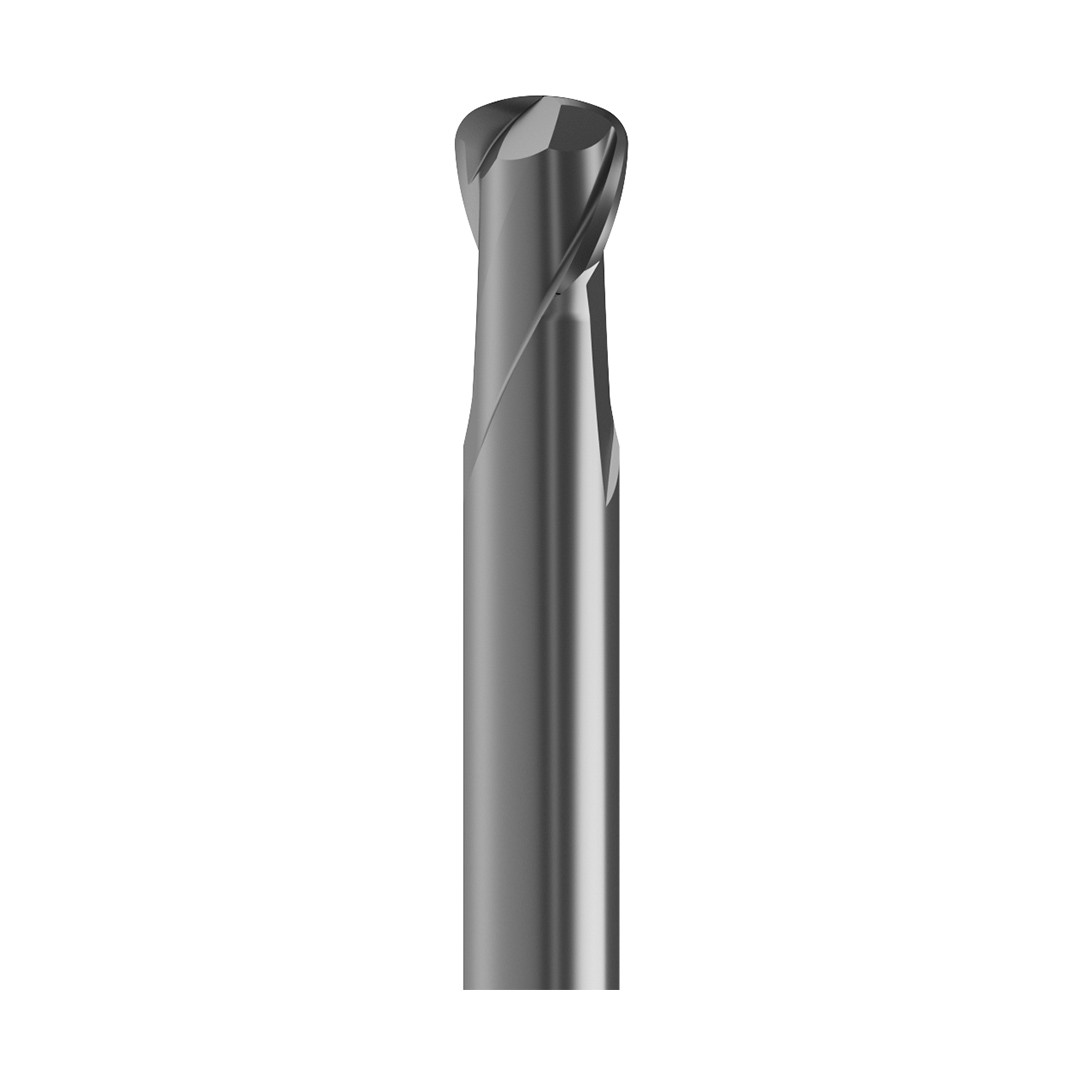

T60 - solid carbide high feed end mill Ø3,0mm, optimized for machining titanium

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: 825.340.A

solid carbide high feed end mill Ø3,0mm, optimized for machining titanium, 2-flute, highest... more

Close menu

Product information about "T60 - solid carbide high feed end mill Ø3,0mm, optimized for machining titanium"

solid carbide high feed end mill Ø3,0mm, optimized for machining titanium, 2-flute, highest precision due to very tight tolerances and excellent surface qualities, with neck length l3=15mm, and AL-COATING for imes-icore 350i-750i machines with shank d2=6mm

Product features

type of tools:	high feed end mill
Radius ( r):	0,85
Machinable Material:	titanium
compatible with machine system:	imes-icore 350i-750i
cutting diameter in mm (d1):	3
shank diameter in mm (d2):	6
coating:	AL-COATING
neck length in mm (l3):	15
total length in mm (l1):	45
radius (r):	0,85
cutting length in mm (l2):	3
number of cutting edges (z):	2
