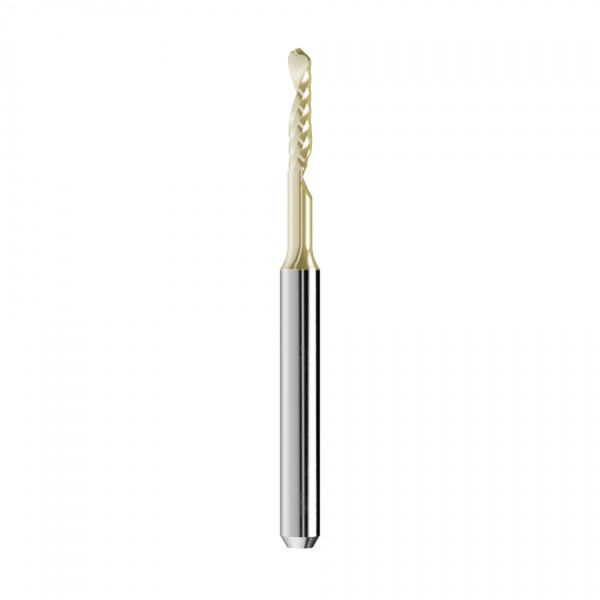

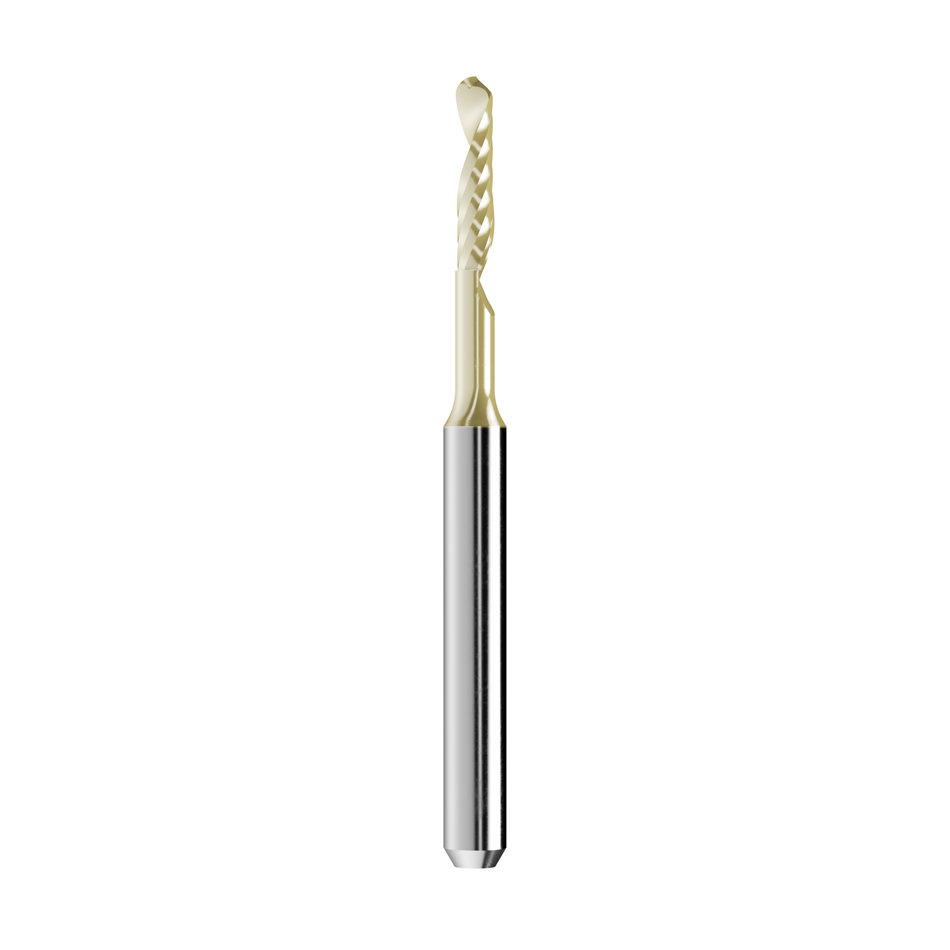

solid carbide ballnose end mill Ø2,5mm, optimized for machining PMMA, PEEK, wax

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 804.175.A
solid carbide ballnose end mill Ø2,5mm, optimized for machining PMMA, PEEK, wax, 1-flute,... more

Product information about "solid carbide ballnose end mill Ø2,5mm, optimized for machining PMMA, PEEK, wax"

solid carbide ballnose end mill Ø2,5mm, optimized for machining PMMA, PEEK, wax, 1-flute, highest precision due to very tight tolerances and excellent surface qualities, with neck length l3=20mm, and ZR-COATING for Roland machines with shank d2=4mm



Product features

type of tools: ballnose end mill
Radius ( r): 1,25
Machinable Material: PMMA, PEEK, wax
compatible with machine system: Roland
cutting diameter in mm (d1): 2,5
shank diameter in mm (d2): 4
coating: ZR-COATING
neck length in mm (l3): 20
total length in mm (l1): 50
radius (r): 1,25
cutting length in mm (l2): 11
number of cutting edges (z): 1
