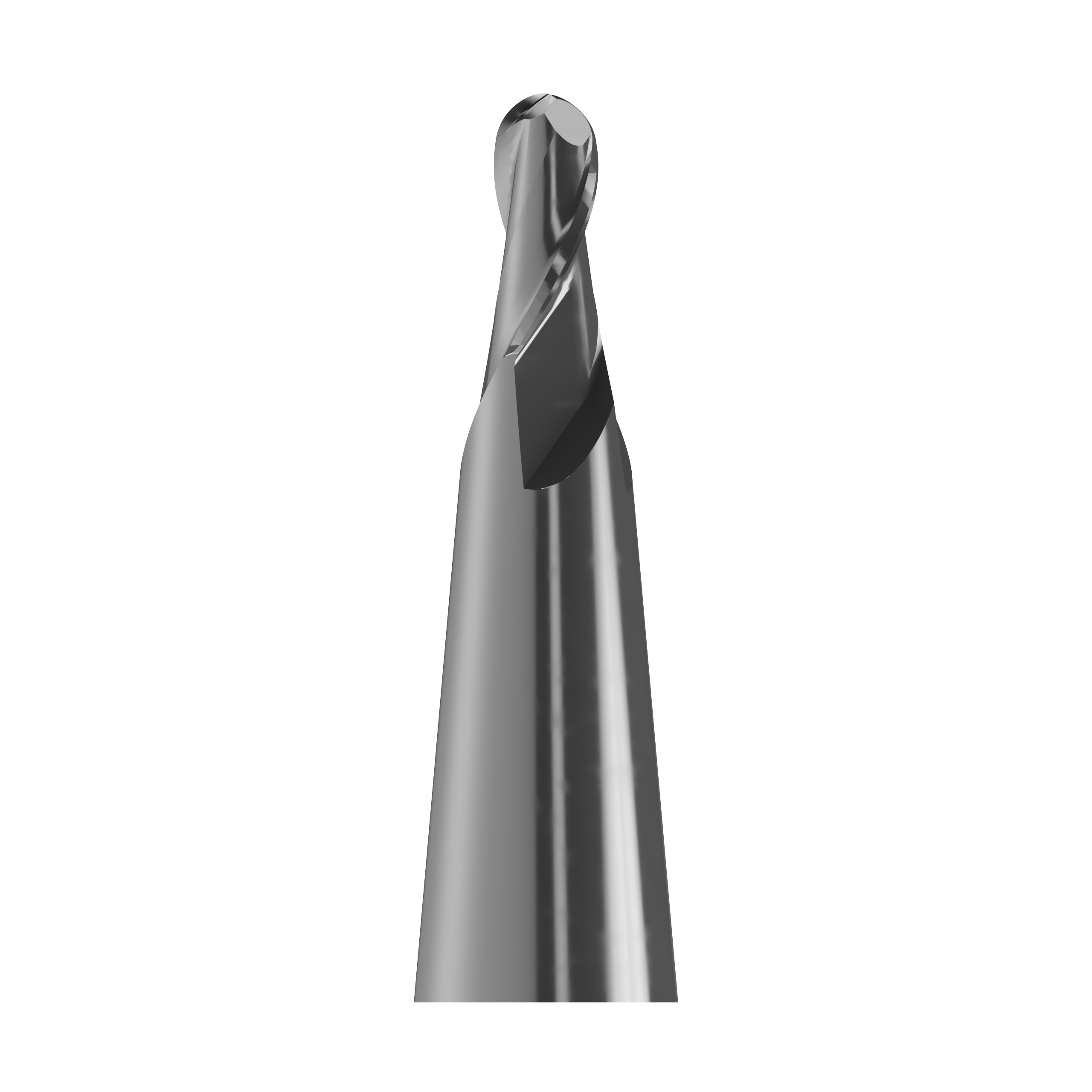

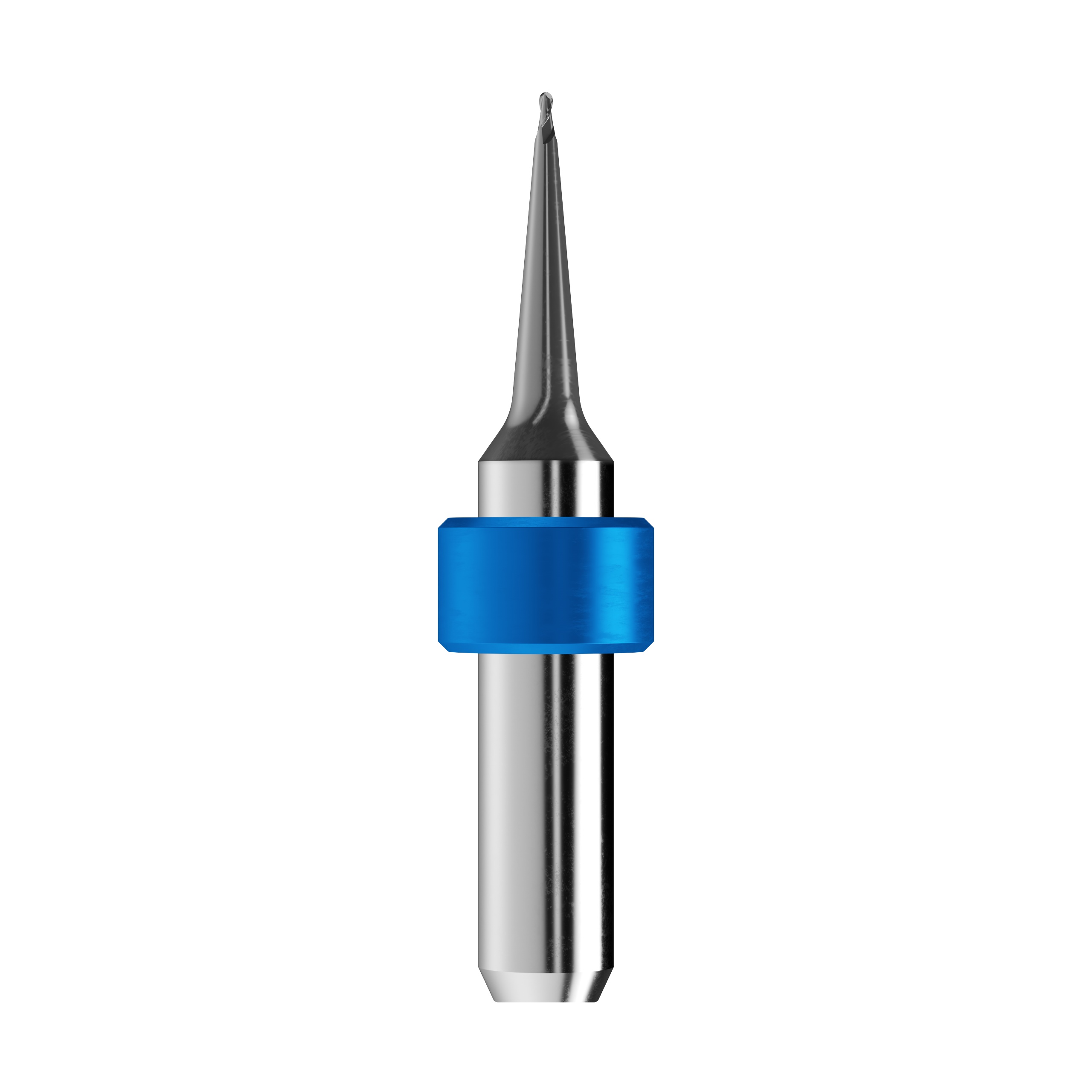

solid carbide ballnose end mill Ø0,6mm, optimized for machining CoCr

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 817.095.A
solid carbide ballnose end mill Ø0,6mm, optimized for machining CoCr, 2-flute, highest precision... more

Product information about "solid carbide ballnose end mill Ø0,6mm, optimized for machining CoCr"

solid carbide ballnose end mill Ø0,6mm, optimized for machining CoCr, 2-flute, highest precision due to very tight tolerances and excellent surface qualities, with neck length l3=kon.mm, and AL-COATING for Ivoclar PM7 machines with shank d2=6mm



Product features

type of tools: ballnose end mill
Radius ( r): 0,3
Machinable Material: CoCr
compatible with machine system: PM7
cutting diameter in mm (d1): 0,6
shank diameter in mm (d2): 6
coating: AL-COATING
neck length in mm (l3): kon.
total length in mm (l1): 40
radius (r): 0,3
cutting length in mm (l2): 1,5
number of cutting edges (z): 2
