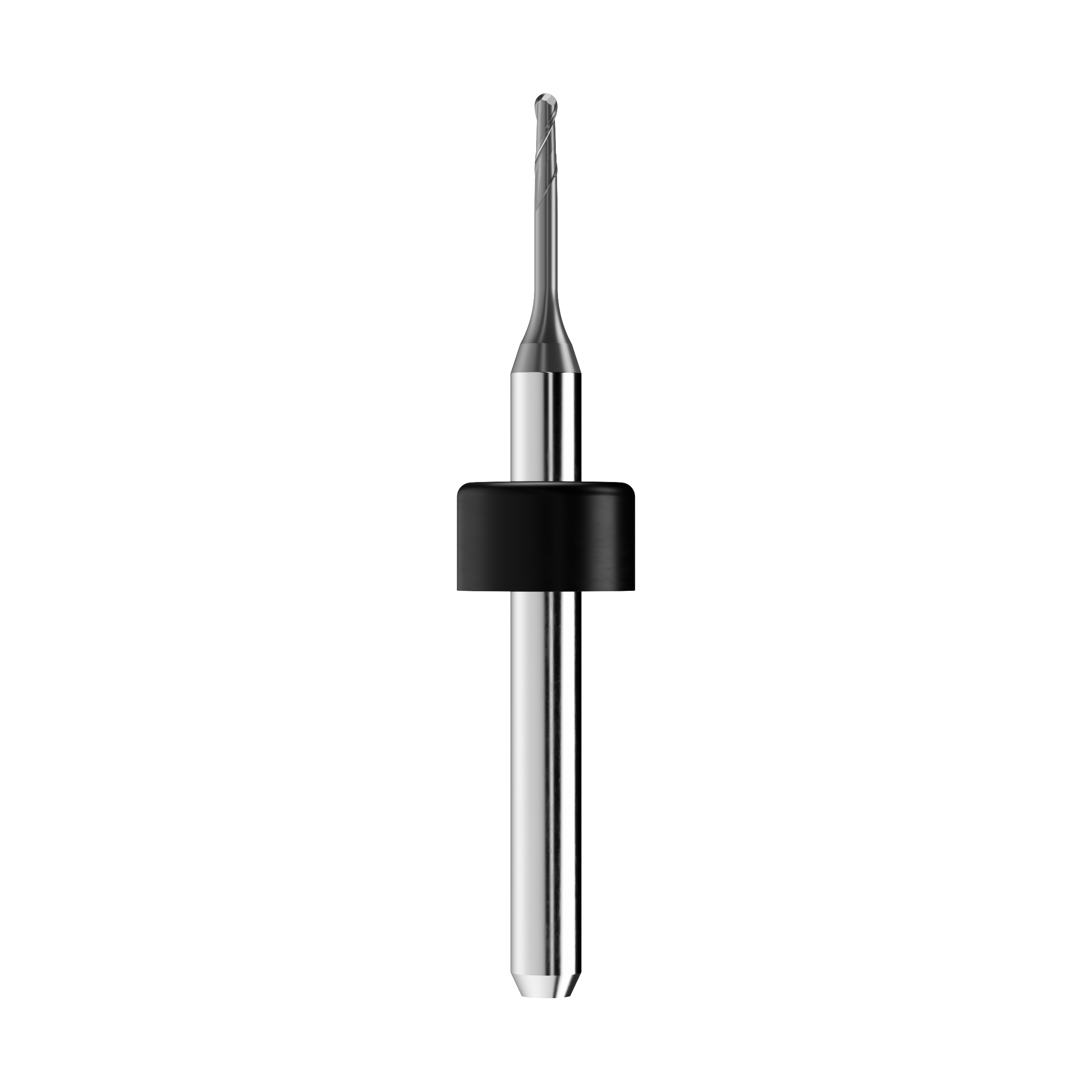

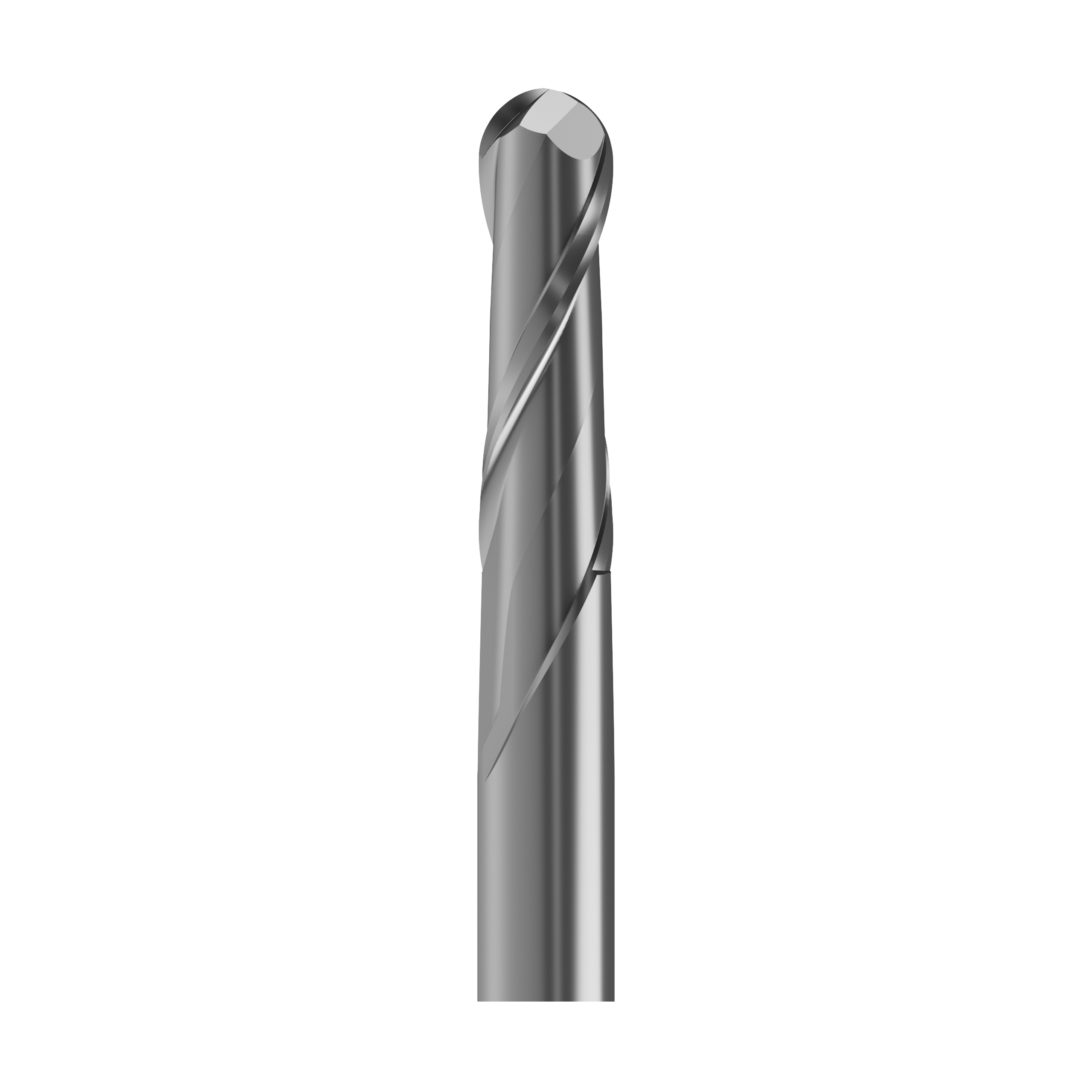

T4/T9 - solid carbide ballnose end mill Ø1mm, optimized for machining CoCr, titanium

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 825.210.A
solid carbide ballnose end mill Ø1mm, optimized for machining CoCr, titanium, 2-flute, highest... more

Product information about "T4/T9 - solid carbide ballnose end mill Ø1mm, optimized for machining CoCr, titanium"

solid carbide ballnose end mill Ø1mm, optimized for machining CoCr, titanium, 2-flute, highest precision due to very tight tolerances and excellent surface qualities, with neck length l3=9mm, and AL-COATING for imes-icore 140i-250i machines with shank d2=3mm



Product features

type of tools: ballnose end mill
Radius ( r): 0,5
Machinable Material: CoCr, titanium
compatible with machine system: imes-icore 140i-250i
cutting diameter in mm (d1): 1
shank diameter in mm (d2): 3
coating: AL-COATING
neck length in mm (l3): 9
total length in mm (l1): 38
radius (r): 0,5
cutting length in mm (l2): 3,5
number of cutting edges (z): 2
