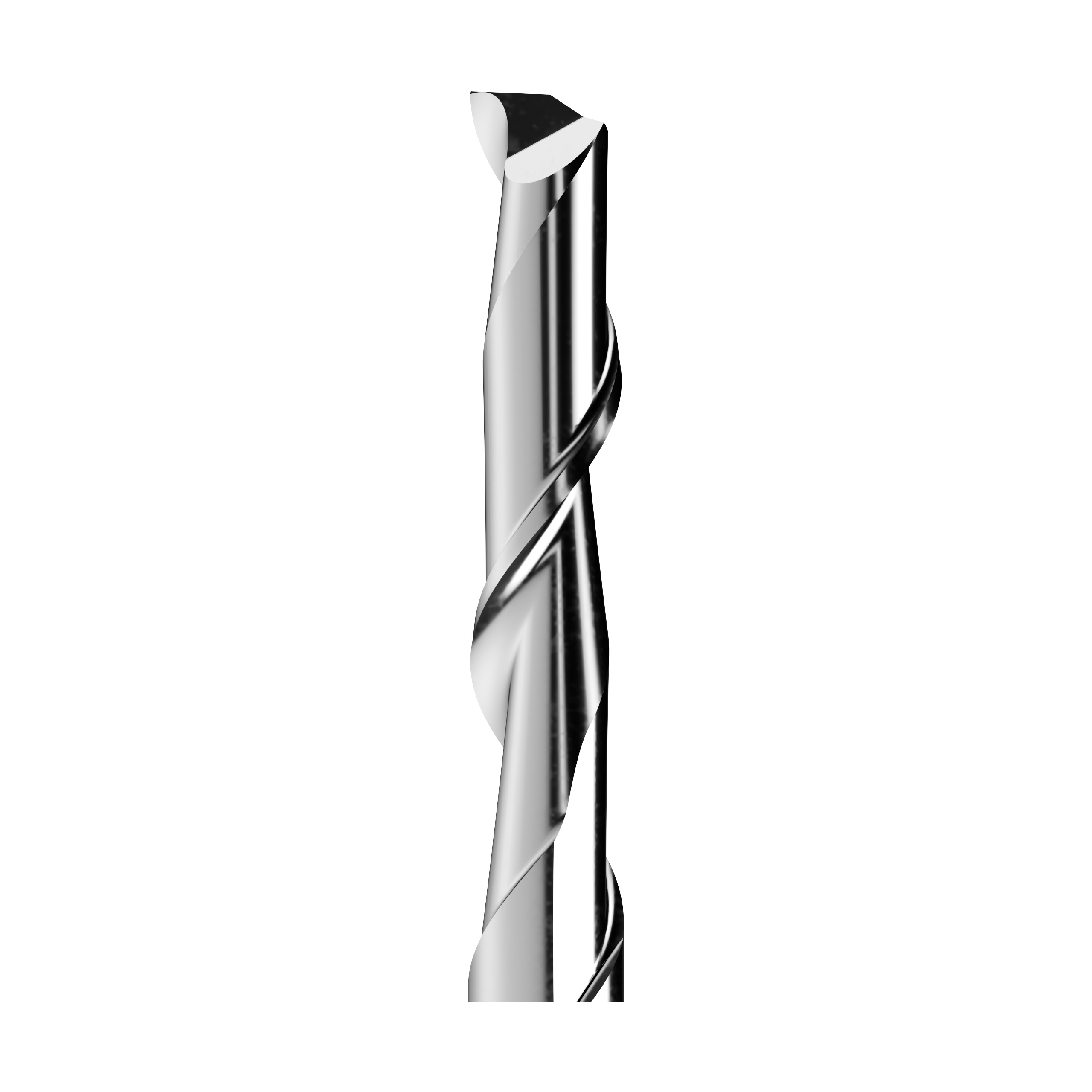

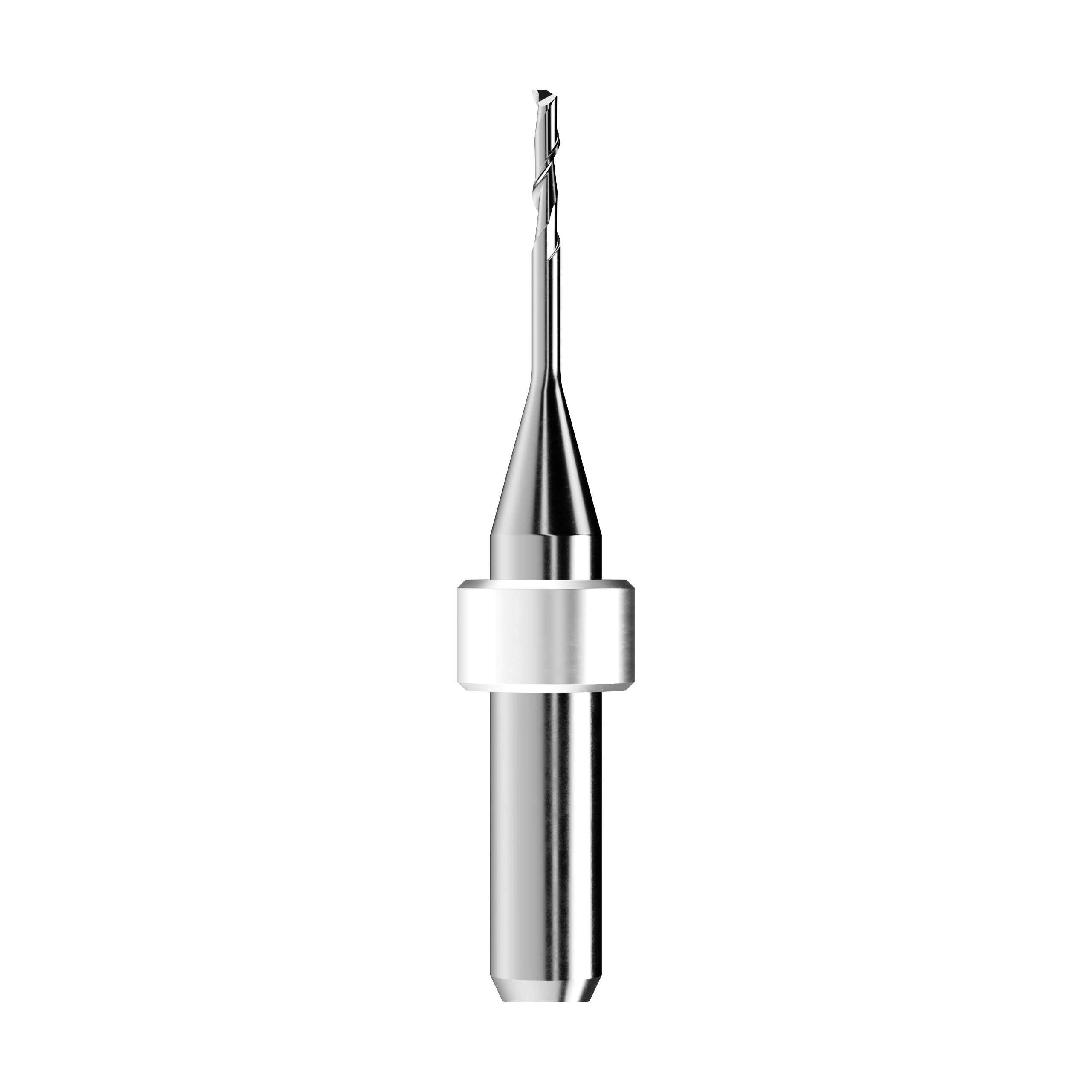

solid carbide end mill Ø1,5mm, optimized for machining CoCr, titanium

€49.39 *

Prices plus VAT plus shipping costs
plus raw material surcharge

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 817.040.A
solid carbide end mill Ø1,5mm, optimized for machining PMMA, wax, 1-flute, highest precision due... more

Product information about "solid carbide end mill Ø1,5mm, optimized for machining CoCr, titanium"

solid carbide end mill Ø1,5mm, optimized for machining PMMA, wax, 1-flute, highest precision due to very tight tolerances and excellent surface qualities, with neck length l3=15mm, uncoated version for Ivoclar PM7 machines with shank d2=6mm



Product features

Radius ( r): -
type of tools: end mill
Machinable Material: CoCr, titanium
compatible with machine system: PM7
cutting diameter in mm (d1): 1,5
shank diameter in mm (d2): 6
coating: UNCOATED
neck length in mm (l3): 15
total length in mm (l1): 49
radius (r): -
cutting length in mm (l2): 6
number of cutting edges (z): 1
